Understanding Bulk Density in Heat Insulation Materials

Today, NTi would like to discuss the density of heat-resistant insulation, commonly referred to as bulk density (kg/m³). Generally, thermal or heat-resistant insulation has a density range of 10-320 kg/m³. The higher the insulation density, the heavier it becomes. It’s crucial to select the appropriate insulation density for different applications.

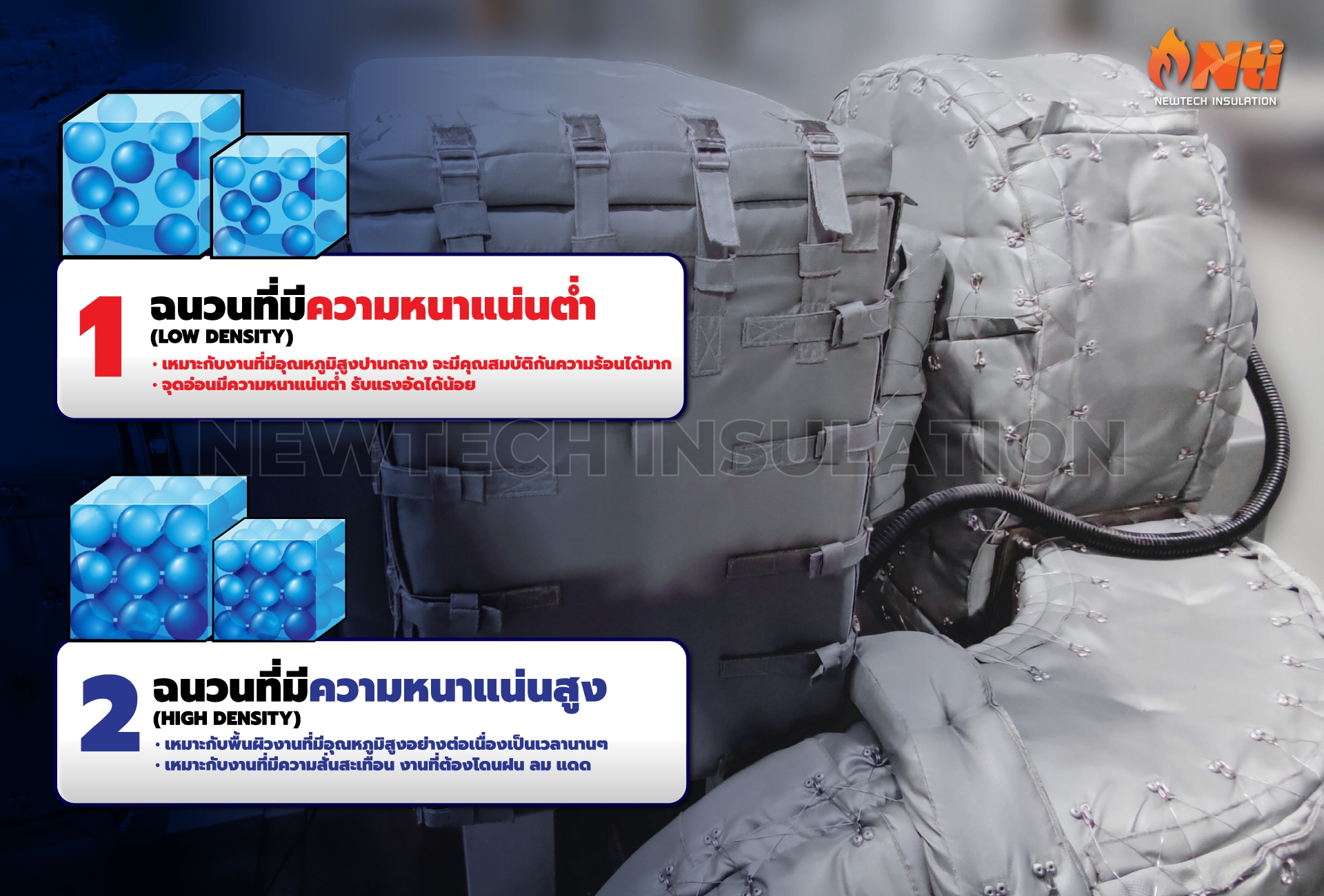

Low-Density Insulation

Low-density insulation typically has a low thermal conductivity coefficient when used in moderate temperature applications. This is advantageous as it provides better heat protection properties. However, low-density insulation has a weakness:

• Low compressive strength, making it unsuitable for environments requiring special load-bearing capacity or durability, such as:
• Walking on insulation during machinery maintenance
• Withstanding turbine vibrations

High-Density Insulation

High-density insulation is heavier but offers several advantages:

1. Better performance in continuously high-temperature surface applications over extended periods compared to low-density insulation.
2. Maintains shape well and is resistant to damage or fiber breakage.
3. Suitable for applications involving:

• Vibrations
• Requirements for insulation durability (cost-effective investment)
• Exposure to rain, wind, and sun (weatherproof)

Important Considerations

Regardless of whether the insulation has low or high density, it’s crucial that the thermal insulation we choose has the following properties:

• Non-flammable
• Fire-resistant
• Non-combustible

These properties are essential because if the insulation is flammable or allows fire to spread, it could lead to loss of life and property in case of a fire.

At Newtech Insulation, we are happy to provide recommendations for selecting industrial-grade insulation based on customer requirements and budget. Our team is ready to assist you in finding the most suitable insulation solution for your specific needs.

Technical Notes on Bulk Density

1. Definition: Bulk density is the weight of insulation material per unit volume, typically measured in kg/m³.
2. Impact on Performance:

• Thermal Conductivity: Generally, lower density materials have lower thermal conductivity, offering better insulation at moderate temperatures.
• Mechanical Strength: Higher density materials typically offer greater compressive strength and durability.

3. Application Considerations:

• Low-density insulation (e.g., 10-80 kg/m³) is often used in residential and light commercial applications where mechanical stress is minimal.
• Medium-density insulation (e.g., 80-180 kg/m³) balances thermal performance and moderate mechanical strength.
• High-density insulation (e.g., 180-320 kg/m³) is used in industrial applications requiring high compressive strength and durability.

4. Temperature Resistance: Higher density materials often perform better at higher temperatures, maintaining their structure and insulative properties more effectively.
5. Cost Implications: Generally, higher density materials are more expensive due to increased material content and manufacturing processes.
6. Installation Considerations: Higher density materials may require specialized installation techniques due to their weight and rigidity.

By understanding these aspects of bulk density, you can make more informed decisions when selecting insulation materials for your specific application, balancing thermal performance, mechanical properties, and cost-effectiveness.
